Product information

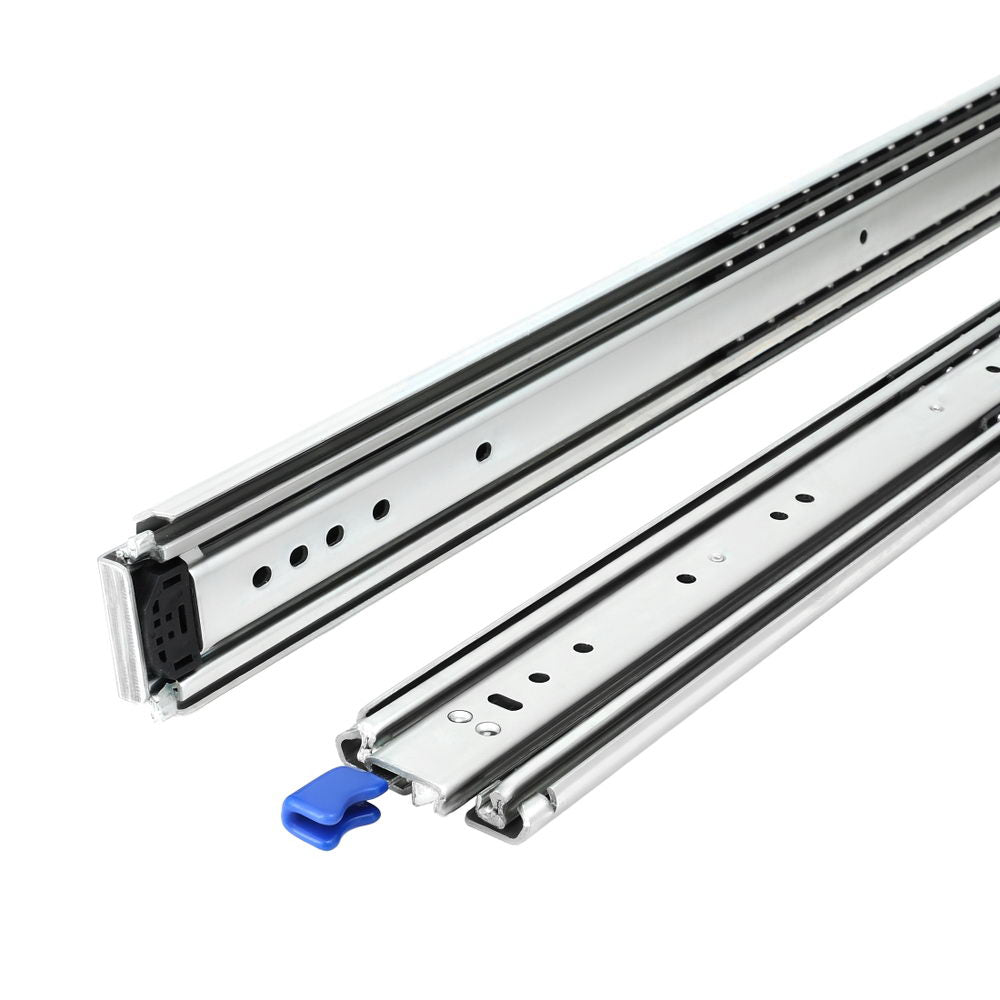

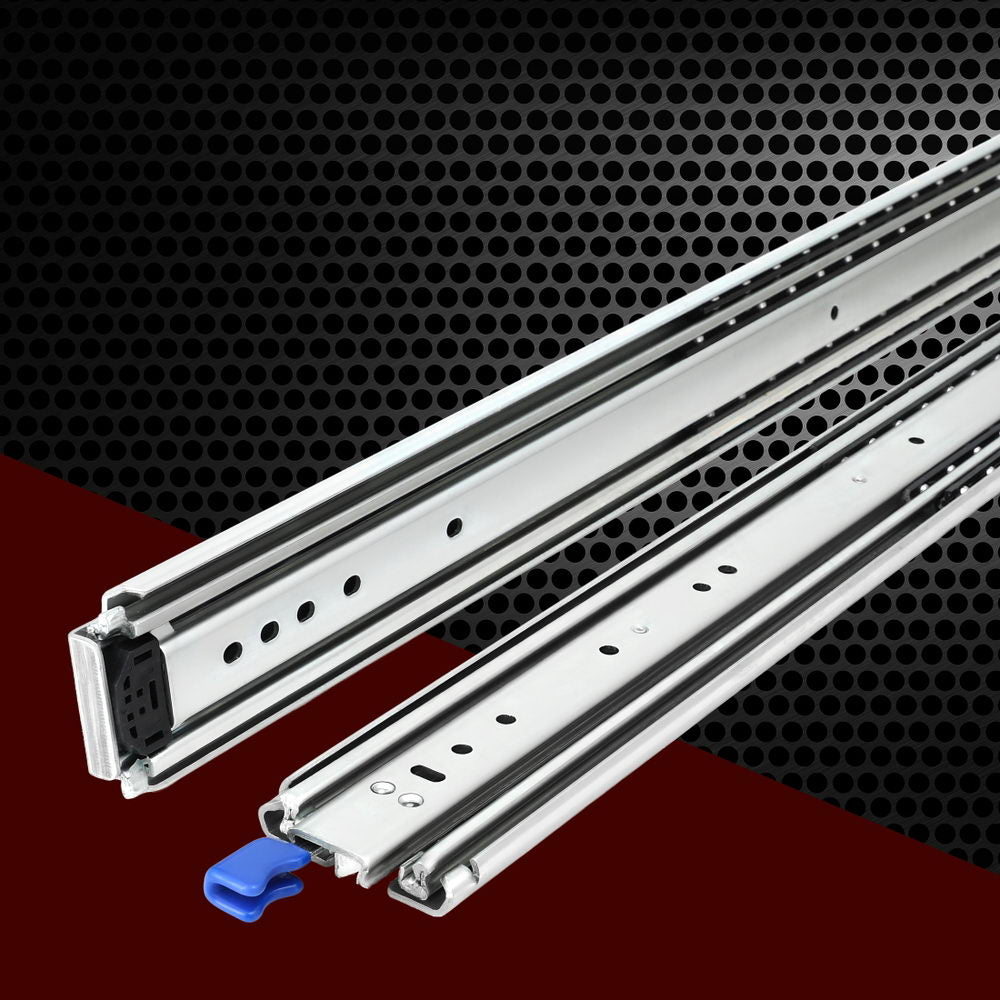

The Giantz Heavy Duty Drawer Slides come as a pair, measuring 76mm in width and 19.5mm in thickness, with a full extension range from 1524mm to 3048mm. The three-section ball bearing design ensures smooth and quiet sliding.The secure lock-in and lock-out mechanism keeps drawers safely fixed in the fully closed or fully extended position, preventing accidental overextension or detachment from the tracks. Crafted from robust cold rolled steel with a corrosion-resistant zinc plated finish, these slides support up to 227kg load capacity, providing reliable strength for heavy storage.Ideal for large drawers, cabinets, industrial storage, vehicle fit-outs, and multimedia equipment, these slides are versatile and built to last. Each set includes two slides, 12 x M5 screws, and 12 x M5 screw nuts as a bonus for easy installation.
Features
Durable cold rolled steel build
Three-Section Drawer Slides
Heavy duty 227kg load capacity

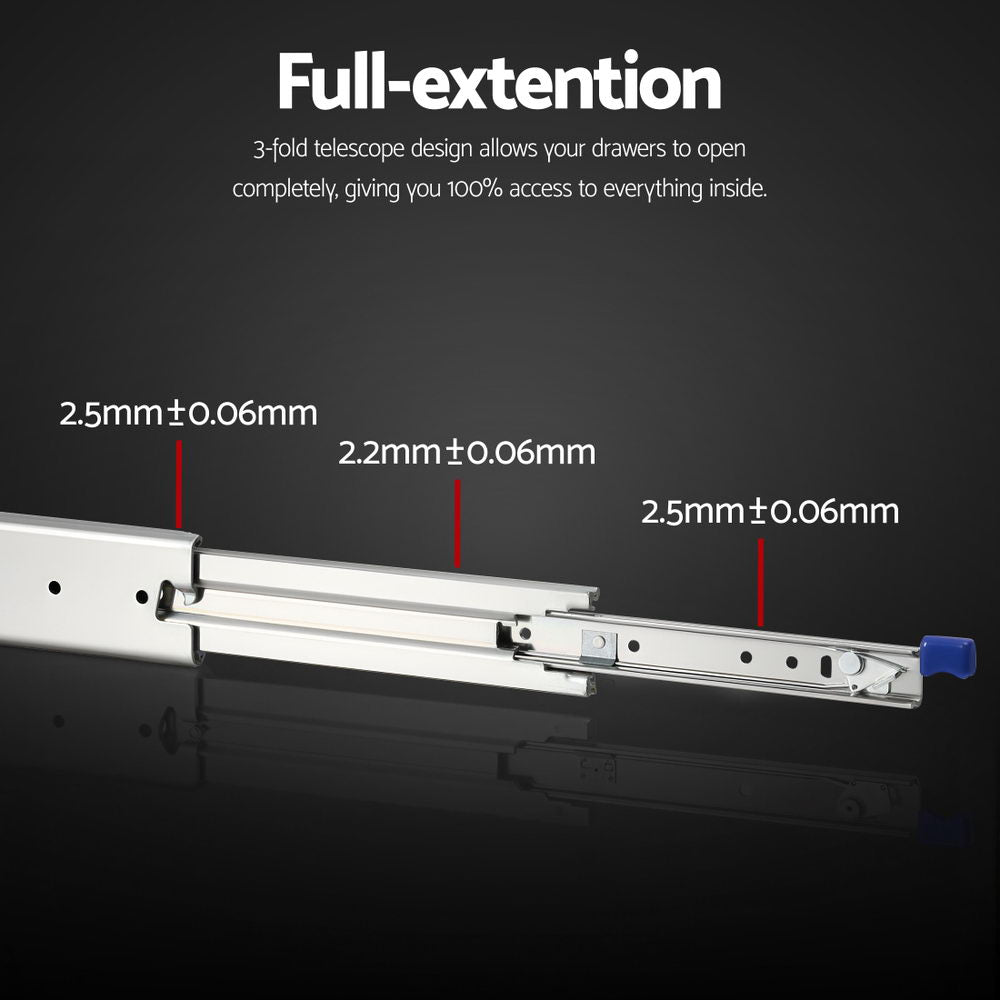

Full extension range 1524mm to 3048mm

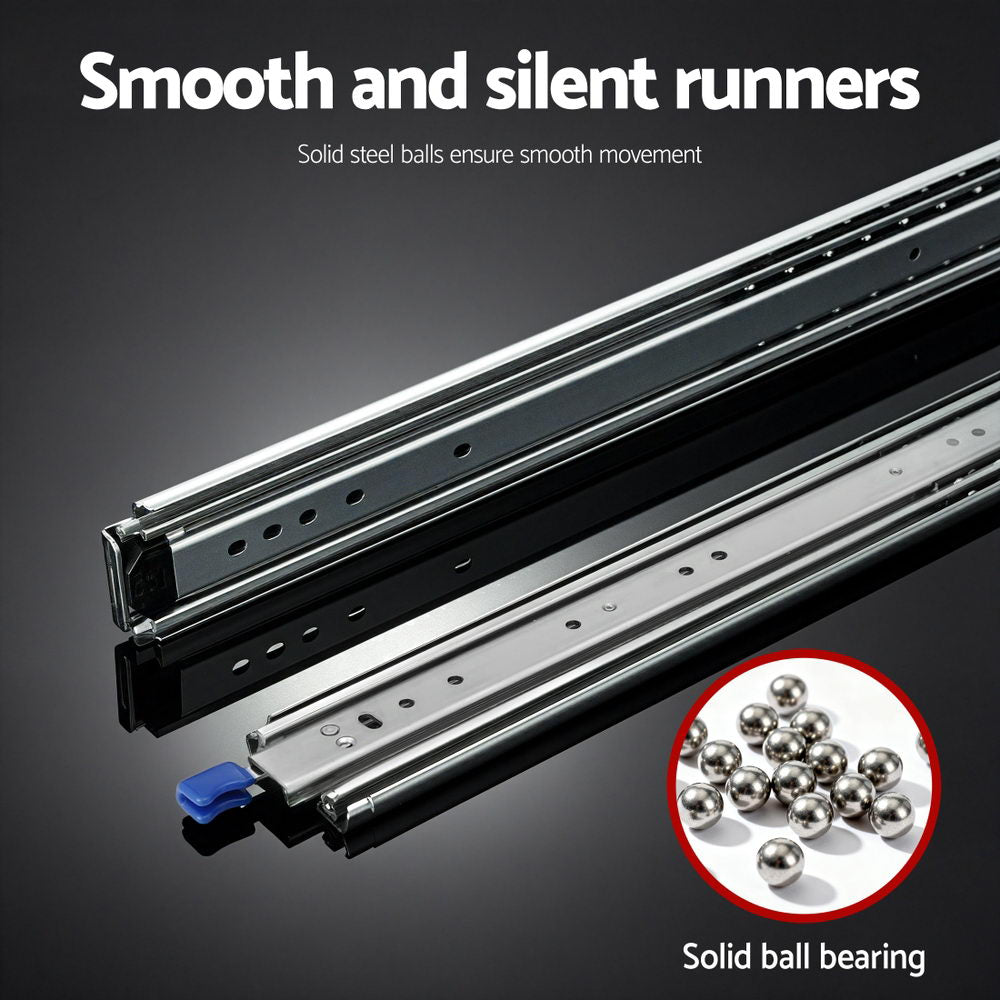

Smooth push and pull without noise
Extra wide 76mm steel rails

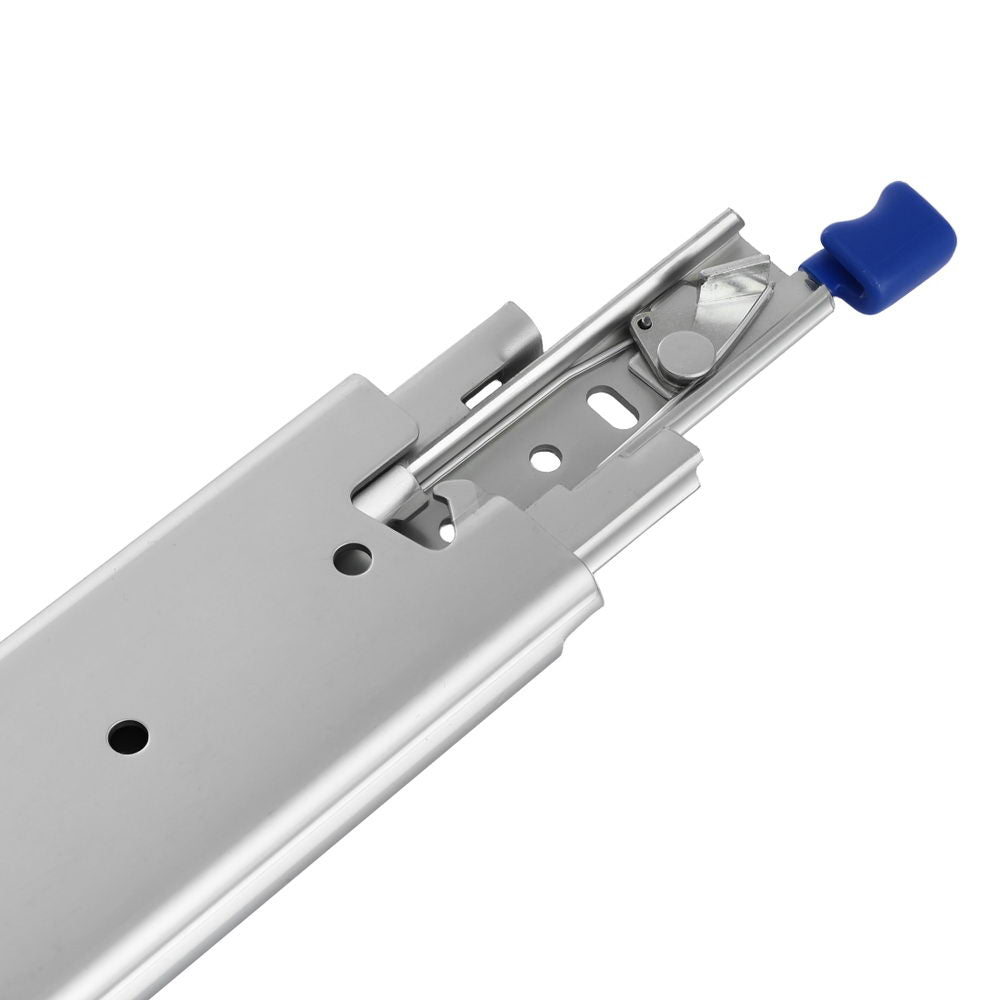

Locking mechanism for secure hold

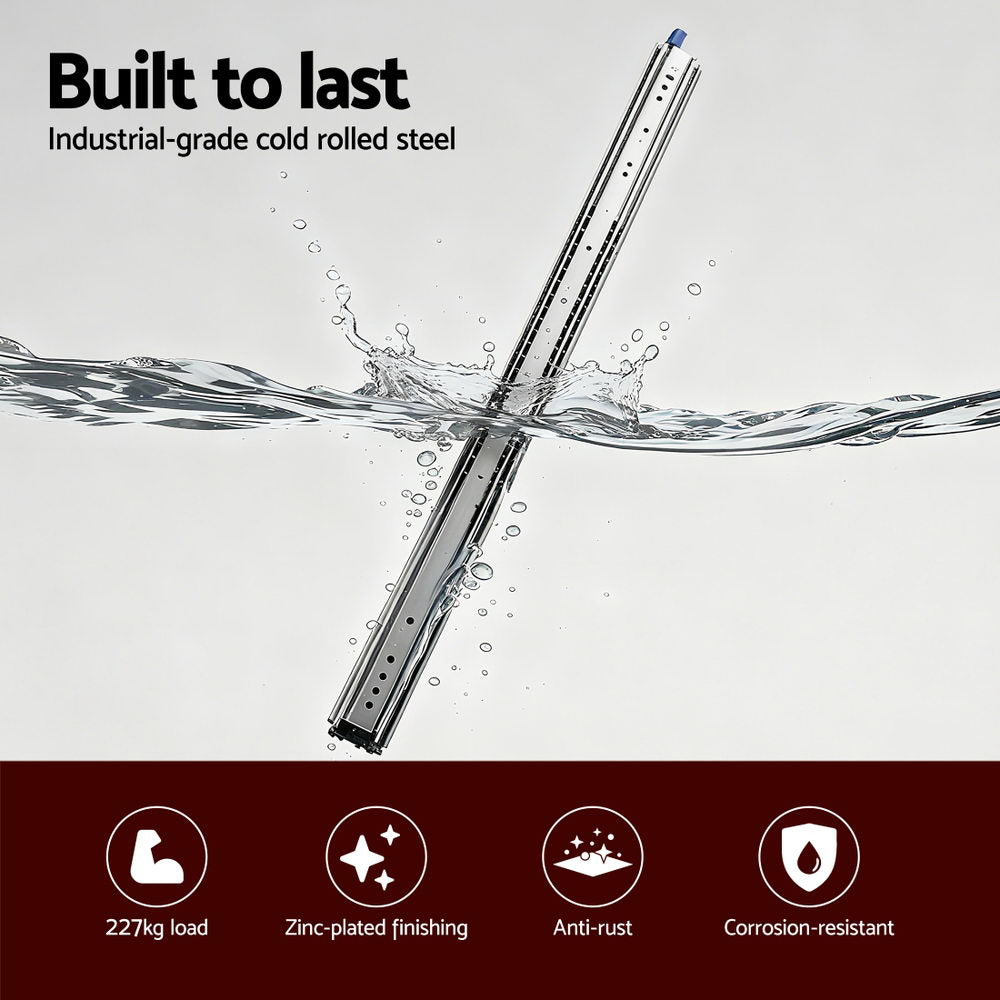

Corrosion resistant zinc plated finish
Includes screws and bonus nuts
Suitable for large cabinets, spacious drawers, RV,trunk and multimedia installations
Specifications:
Color: Sliver
Material: Cold Rolled Steel
Finish: Zinc Plated
Load Capacity: 227KG
Fully Pull-Out Length: 3048mm

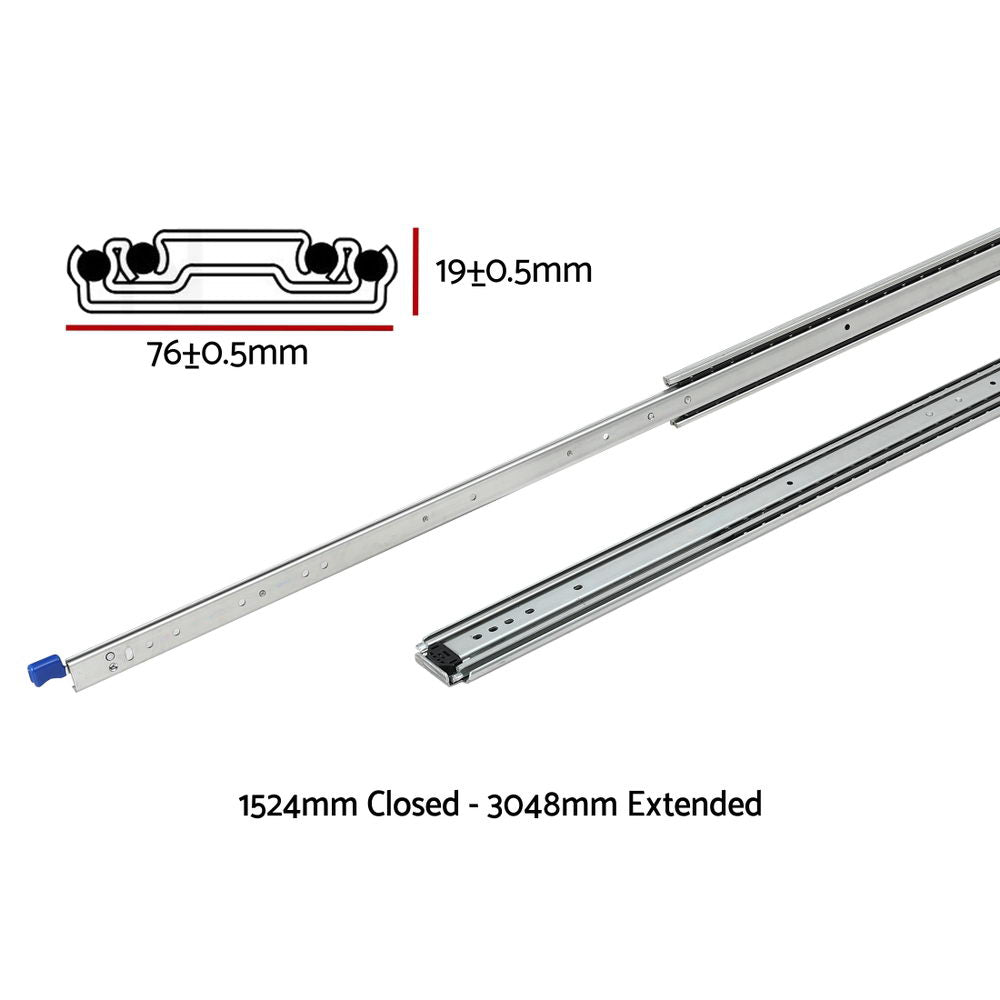

Fold Product Size: 152.4x 7.6x 1.95 cm
Slide Lock: Support
Assembly Required: No
No. Of package: One
Package Content
Giantz drawer slide X1 pair
M5 screw X12
M5 screw nut X12
User Manual X1
This product comes with 1 year warranty
