Focus SPX-750 750W Fully Modular SFX Power Supply, Gold Rated

Click to open expanded view

Limited Free Ship Low stock

Focus SPX-750 750W Fully Modular SFX Power Supply, Gold Rated

Name: Focus SPX-750 750W Fully Modular SFX Power Supply, Gold Rated
Brand: Seasonic
Price: 410.95 AUD
Rating: 5 (1 reviews)

SKU: V28-PSUSEAFOCUS750SPX

Key Highlights:

• 80 PLUS Platinum certified efficiency delivers reliable, high-performance power.
• Fully modular flat black cables keep small form factor builds clean and tidy.
• S3FC fanless mode runs silently until 30% load for quieter systems.
• Compact SFX size with SFX-to-ATX expandability suits varied case builds.
• Gold plated connectors and a 10-year warranty ensure lasting reliability.

Ships from AUSTRALIA

Sale price

$410.95

Regular price

$514.99

You save

20%

Shipping Estimate

Only 5 left in stock!

Quantity

Description

FEATURE SUMMARY

80 PLUS® Platinum certified

Compact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm

Tight Voltage Regulation

Cable-free Connection Design

S3FC - Fanless until 30 % load

SFX to ATX Expandability

Gold plated connectors

Technical Specifications
80PLUS®		Platinum
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel SFX 12 V / ATX 12 V
Dimensions		100 mm (L) x 125 mm (W) x 63.5 mm (H)
Fan Information	Fan Size	92 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH

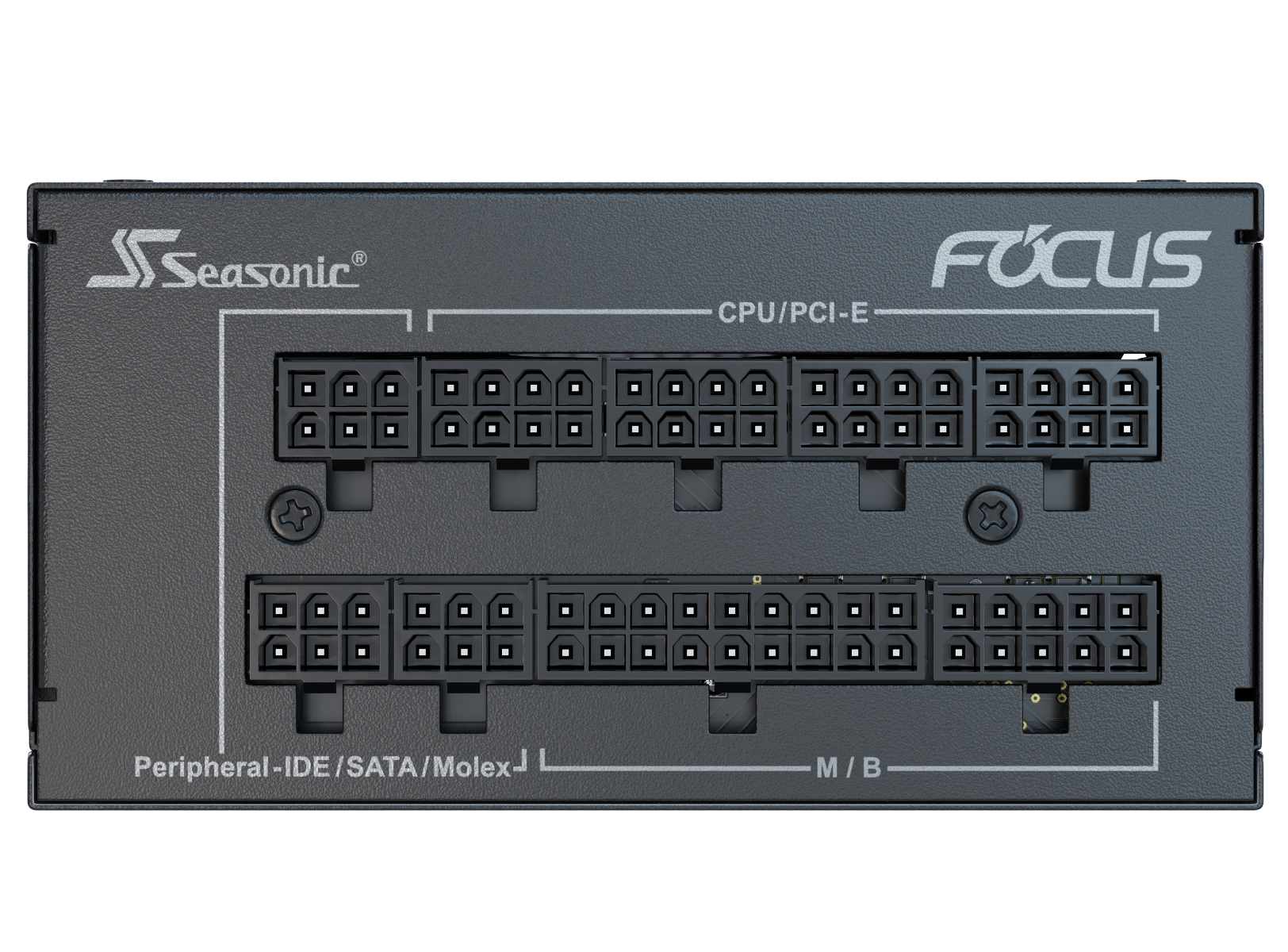

Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 10 - 5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
	Maximum Power	100 W		744 W	3.6 W	15 W
	Total Continuous Power	750 W
