Product information

PRIME TX ATX 3.1
The Seasonic PRIME TX ATX 3.1 Series is built on top of all the great features of PRIME TX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W and 1300 W units are equipped with native 12V-2??6 connectors, Digital Fan Control, and 105??C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term durability. All these qualities make these power supplies perfect to welcome the newest high power graphic cards and processors on the market.


Technical Specifications
80PLUS Titanium
Cybenetics Efficiency Level Titanium
Cybenetics Noise Level Lambda A
Form Factor ATX/EPS
Dimensions 210 mm (L) x 150 mm (W) x 86 mm (H)

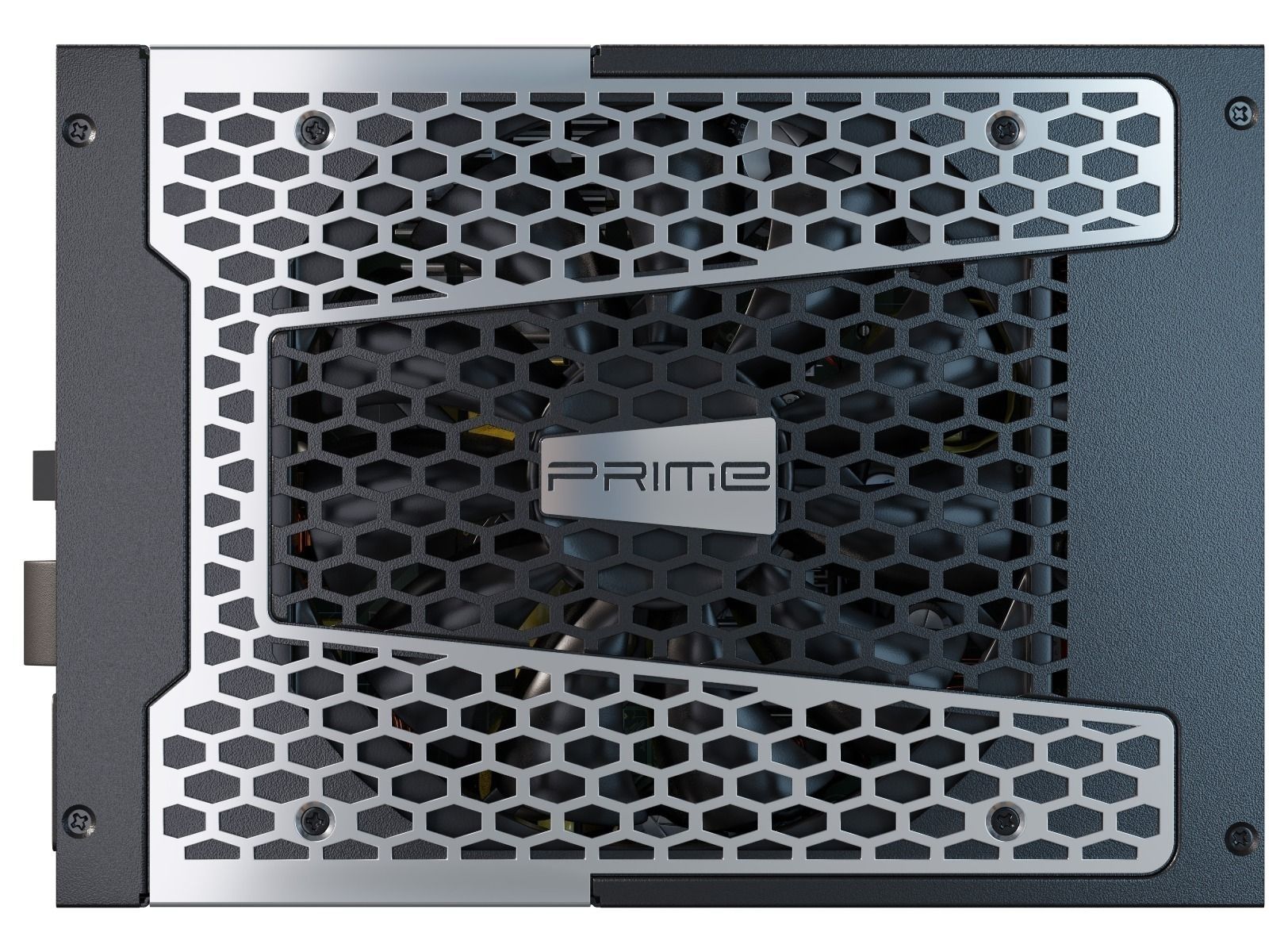

Fan Information Fan Size 135 mm
Fan Control Digital Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 C, 15 % - 65 % RH

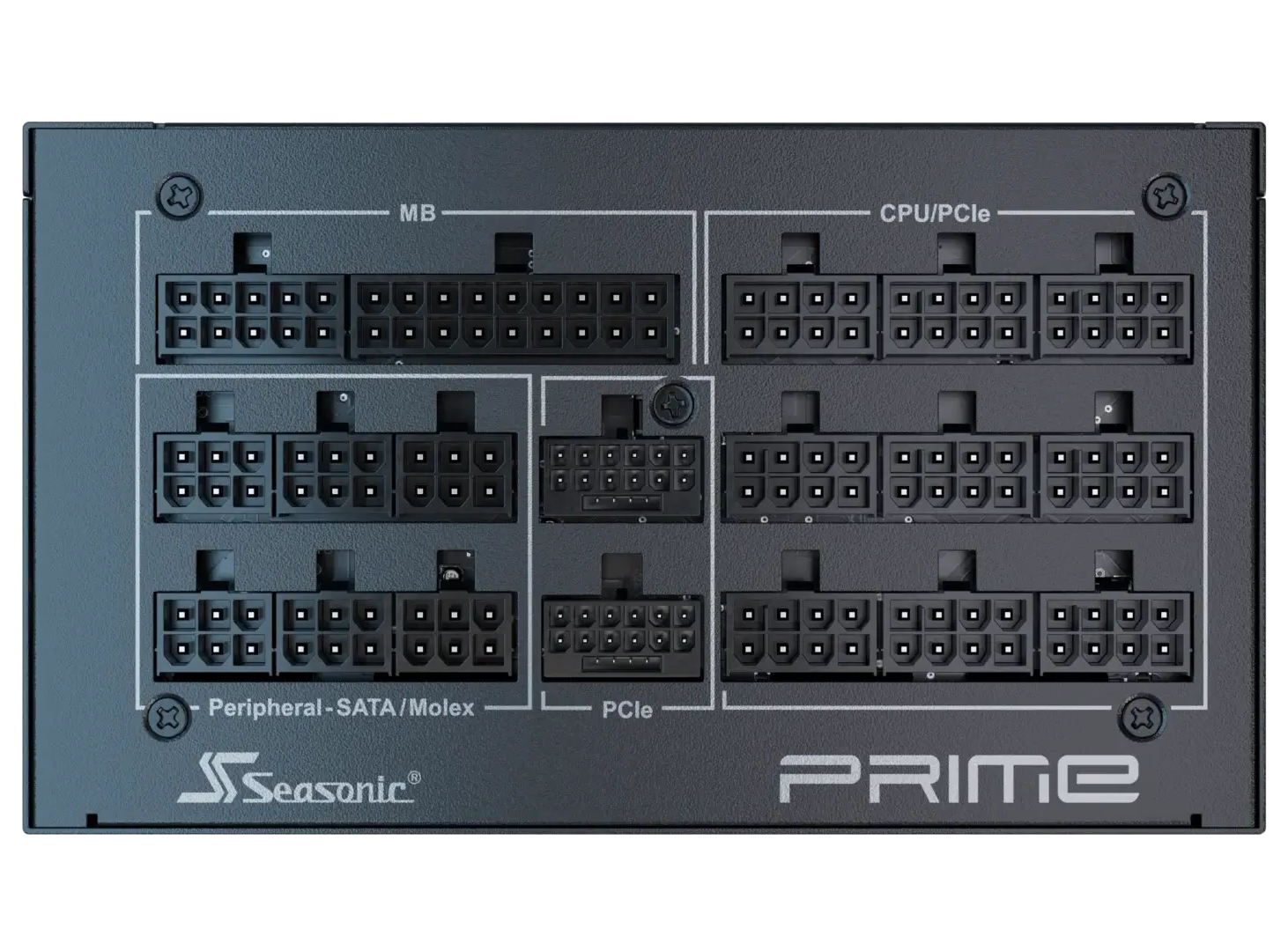

Cable Information Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features Operating Temperature 0 - 50 C
MTBF @ 25 C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years

V28-PSUSEA1600TXV28-PSUSEA1600TX
Power Output
AC Input Voltage: 100 V - 240 V
Current: 15 - 10 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 133.3 A 0.5 A 3 A
125 W 1600 W 6 W 15 W
Total Continuous Power 1600 W
