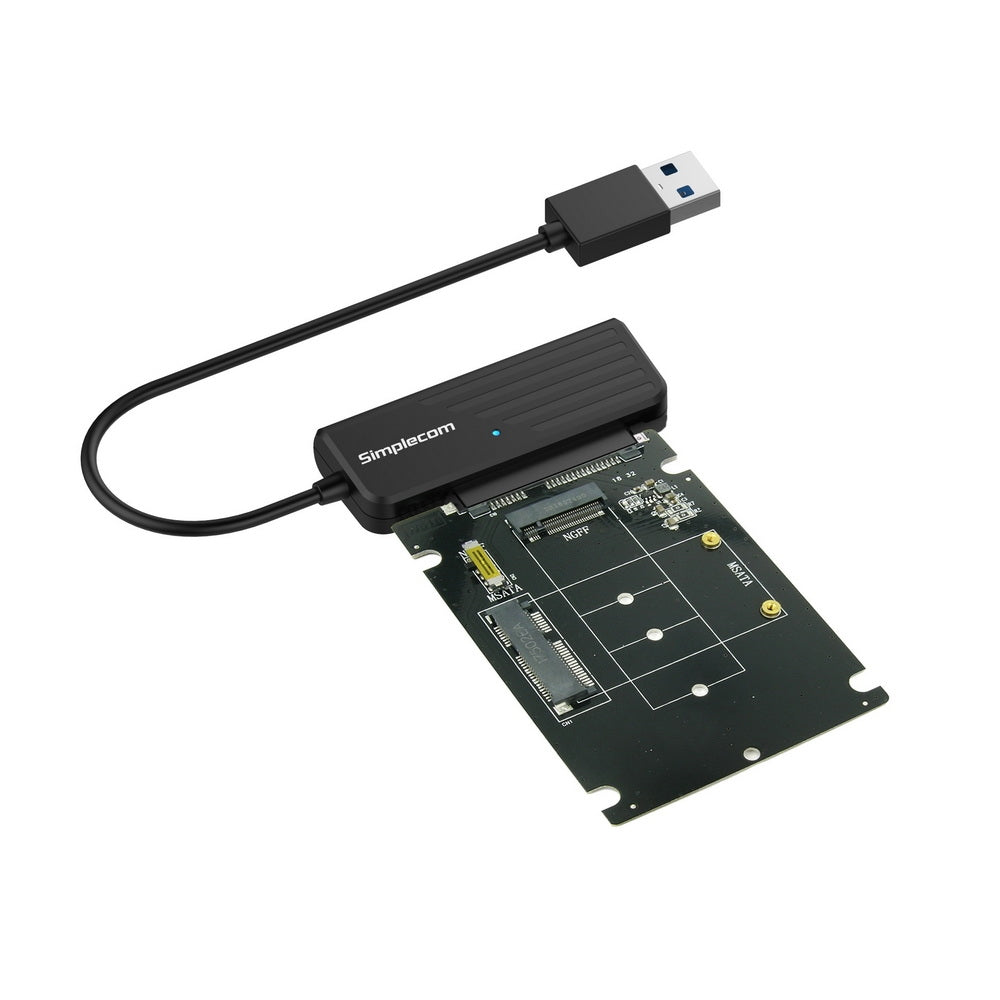

Simplecom SA225 USB3.0 to mSATA + M.2 NGFF B Key 2 In 1 Combo Adapter

SA225 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to USB 3.0 interface. With this adapter, you can easily access M.2 or mSATA SSDs via standard USB port on PC, also you can install this adapter to SATA port after detached the USB cable. It’s an ideal solution for data backup and migration.

Features

mSATA + M.2 SSD 2 in 1 Combo Adapter

Convert a mSATA or M.2 SSD to USB 3.0

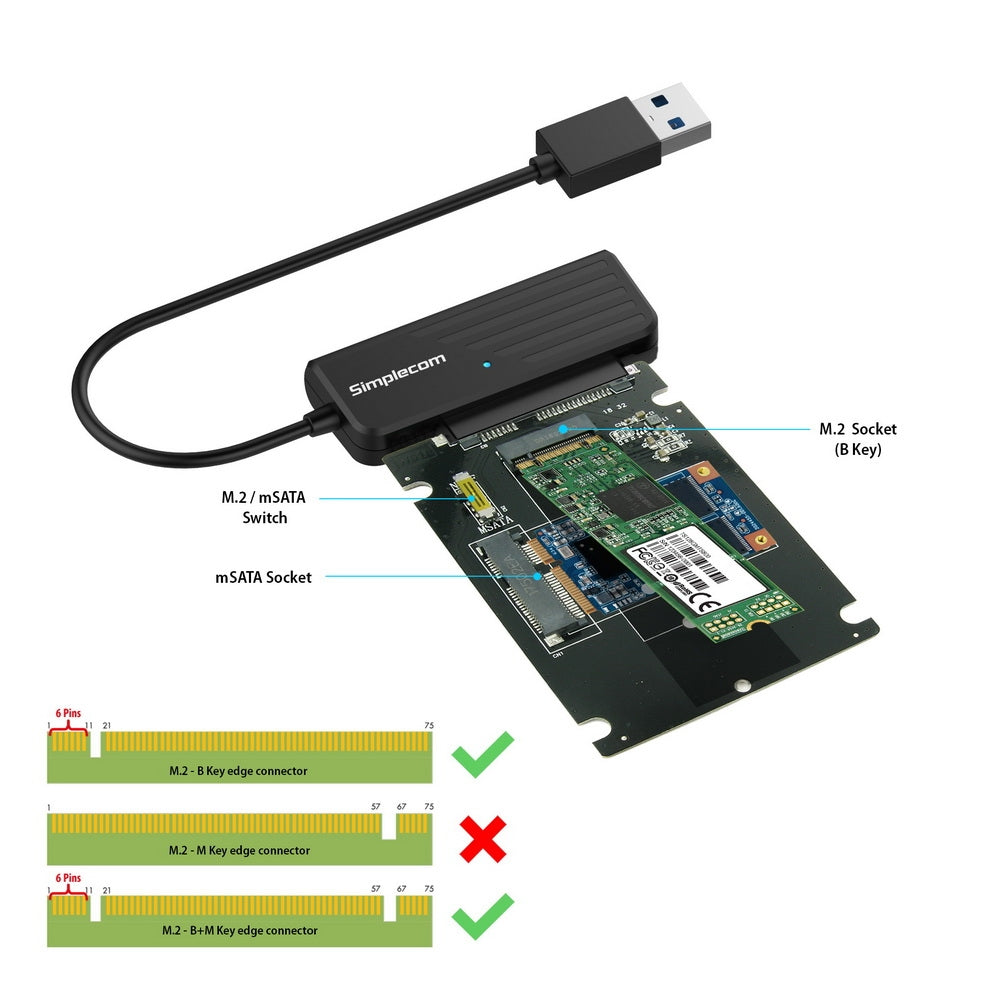

On board mSATA and M.2 Switch

Detachable USB 3.0 cable

USB 3.0 (USB3.1 Gen 1) interface up to 5Gbps data transfer rate

Plug and play, no drivers required

Compatible with Windows 7 and above, Mac OS 10.6 and above

Specifications

Circuit board Size: 97x65x5mm

Support following form factor M.2(NGFF) SSD:

Type 2230-D2-B-M: 30mm(L) x 22mm(W)

Type 2242-D2-B-M: 42mm(L) x 22mm(W)

Type 2260-D2-B-M: 60mm(L) x 22mm(W)

Type 2280-D2-B-M: 80mm(L) x 22mm(W)

Support following form factor mSATA SSD:

Full size mSATA : 50.95mm(L) x 30mm(W)

Package Contents

1x mSATA + M.2 SSD 2 in 1 Combo Adapter

1x USB 3.0 Cable

1x Screw Driver

Screws with Washer

Important Note:

*NOT Designed for NVMe PCIe M.2 SSD, will not fit M Key Only SSD Module. Compatible with SATA protocol based mSATA and M.2 (B Key Only or B+M key) SSD only.
