200mm Linear Scale – 1‑Axis Lathe/Mill DRO, 0.0002" Accuracy, Aluminum Body

SKU: V952-GSC200MMDC0000001V0
Price
$77.50
In stock and ready for shipping
Shipping Estimate
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Key Highlights:

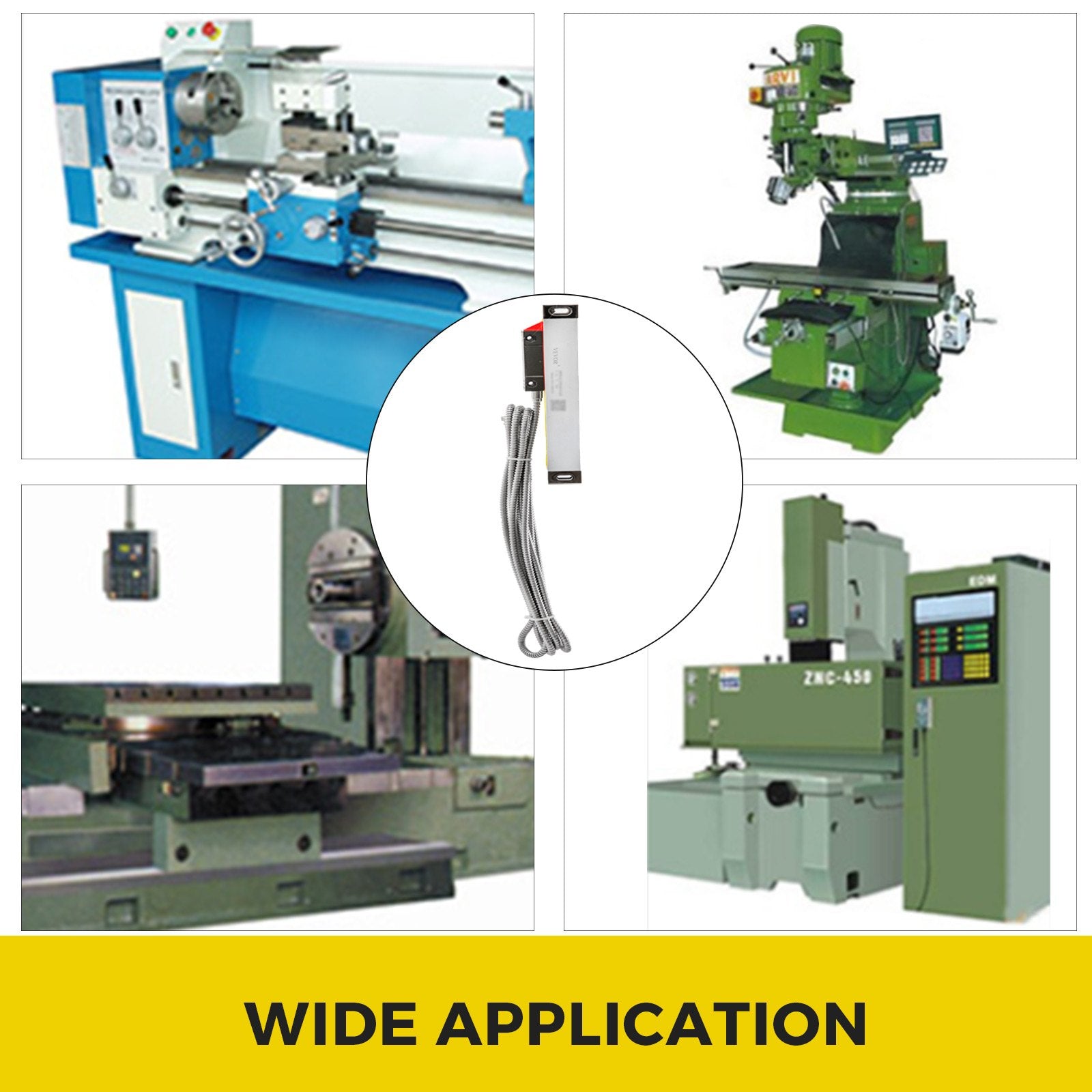

High‑precision 200mm optical linear scale with 0.005mm accuracy and 5µm resolution, ideal for lathes, mills and precision machining applications

Durable aluminum body with zinc‑alloy die‑cast read head and chrome plating for corrosion resistance, rigidity and long service life

Double‑lip sealed encoder provides enhanced protection against dust, oil and contaminants; includes 3m multilayer‑shielded signal cable with metal‑shell protection

Stable 5‑bearing slide system ensures smooth, repeatable positioning; rear T‑slot design supports flexible mounting when surface contact is limited

Easy installation with slotted end blocks, multiple mounting points and included hardware; 9‑pin connector (Pin‑26789) for standard DRO compatibility

Ships from Australia

Shipping information

Item will be shipped within 1-3 Business Days from Australia

For Delivery Time Frame and More Info Click Here

14 Days Returns

Purchase with peace of mind knowing item can be returned within 14 days of delivery.

Full Details Click Here

Have a question?
200mm Linear Scale – 1‑Axis Lathe/Mill DRO, 0.0002" Accuracy, Aluminum Body

200mm Linear Scale – 1‑Axis Lathe/Mill DRO, 0.0002" Accuracy, Aluminum Body

$77.50

Product information

V952-GSC200MMDC0000001V0 Product Features

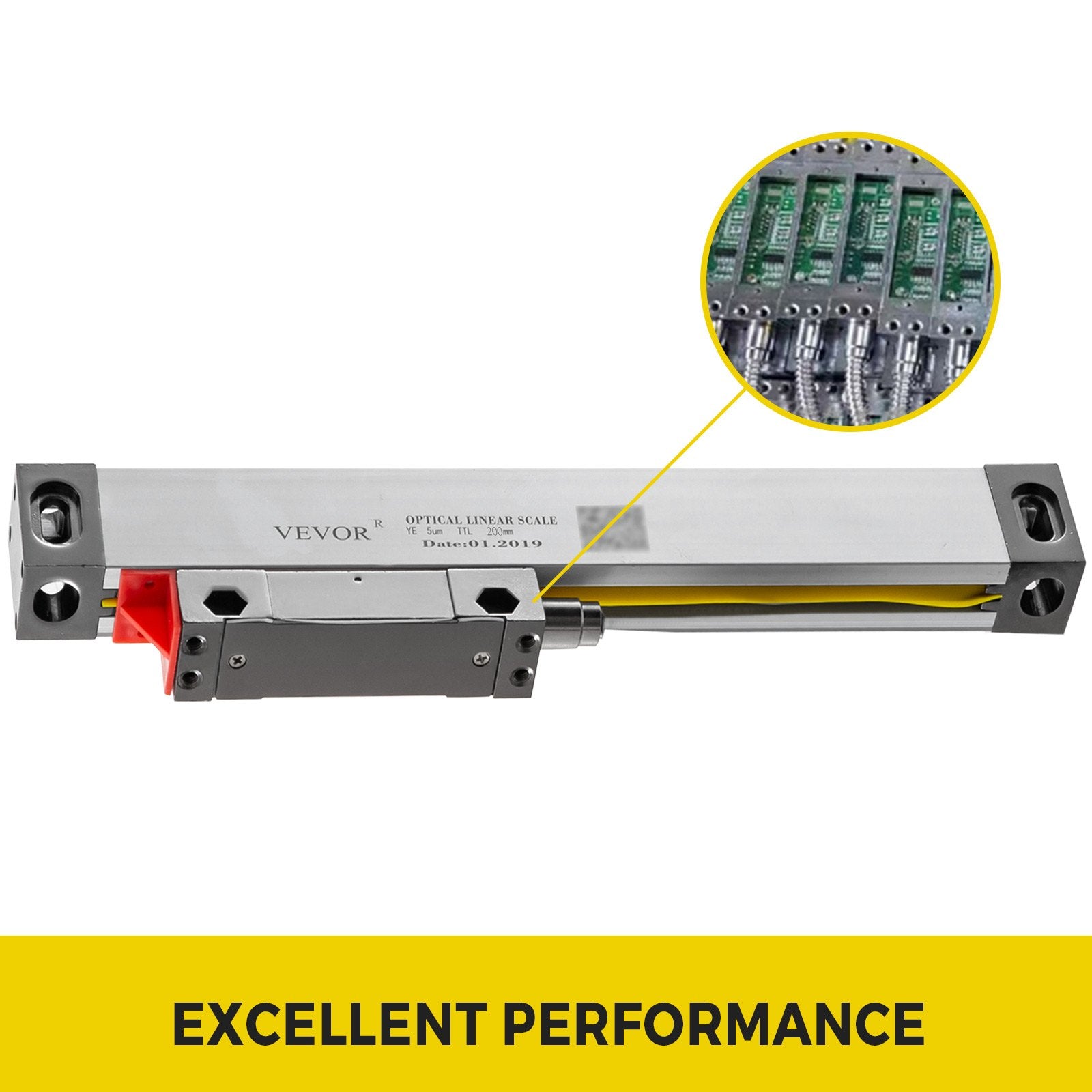

HIGH PERFORMANCE- Our grating and precision ruler series have passed strict quality inspection. Meet the standard of accuracy and stiffness good straightness and precise measurement. Travel Length

200mm, Accuracy: 0.005 mm, Resolution: 5 m. Connector: 9-Pin connector (Pin-26789), 2 to 0V, 6 to A, 7 to 5V, 8 to B, 9 to R1.

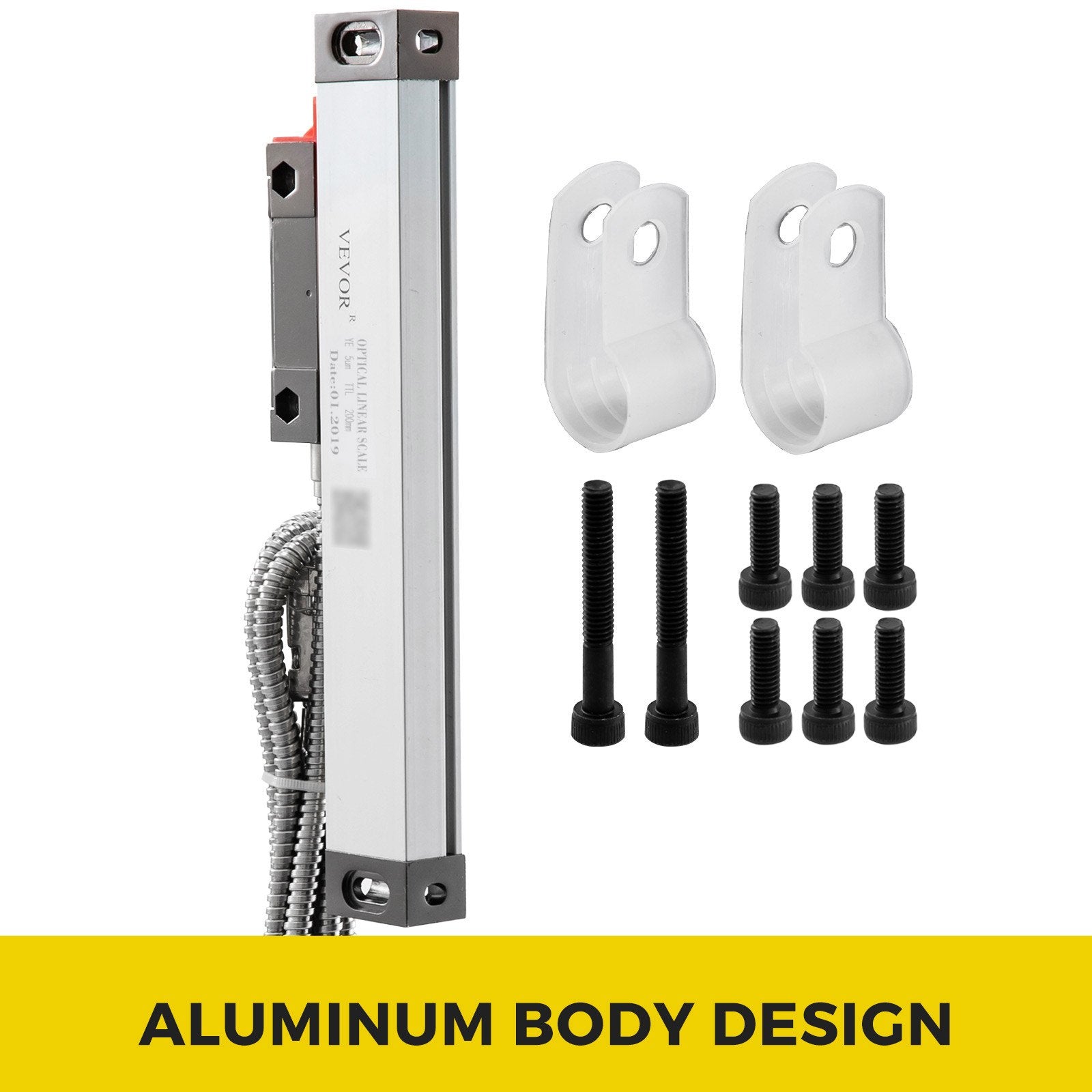

DURABLE ALUMINUM BODY- Aluminum profile scale body, and head with zinc alloy die casting with chrome plating, corrosion resistance. Beautiful and decent appearance, reasonable design with good rigidity.

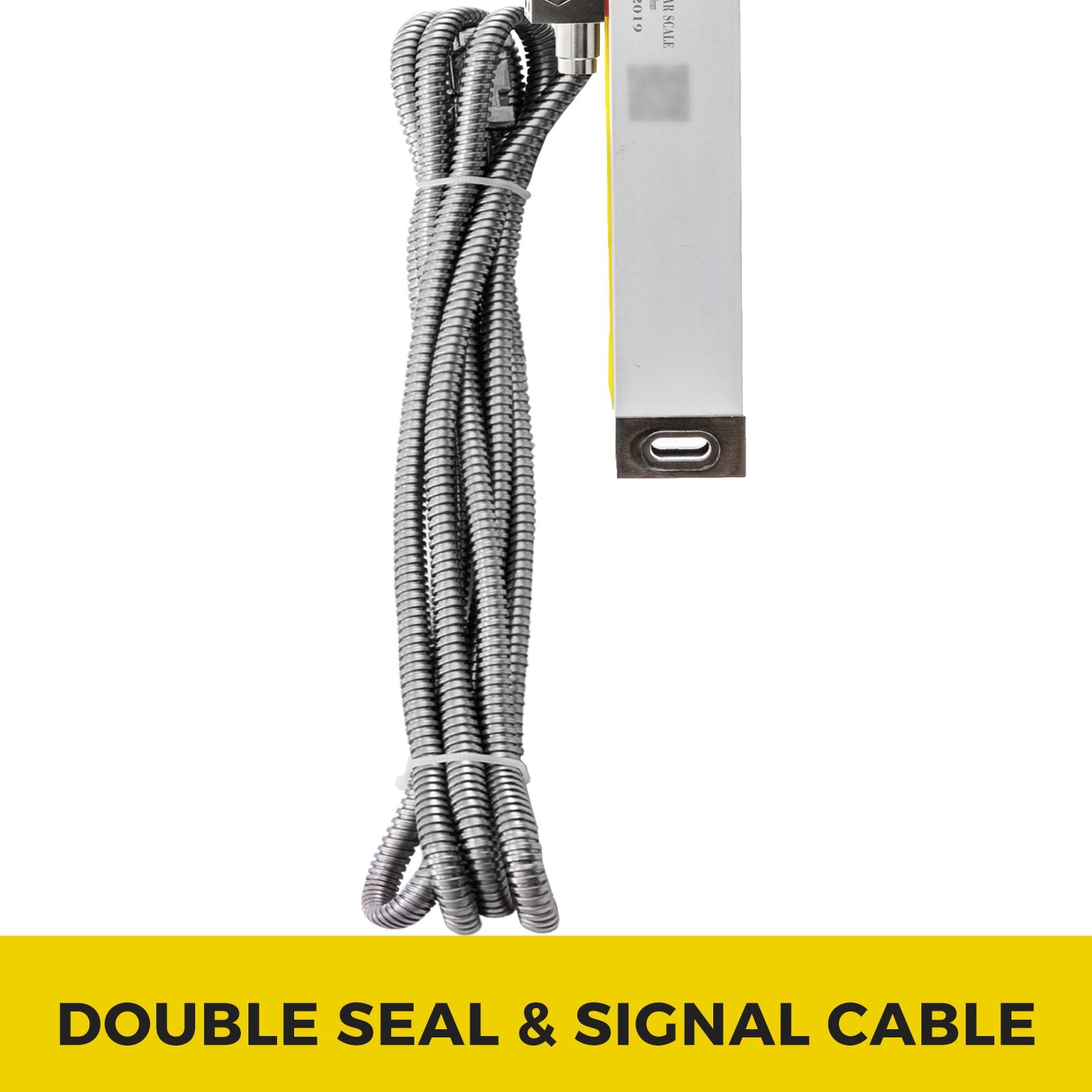

DOUBLE SEAL+SIGNAL CABLE- The Linear Scale Encoder features a double layer lip seal to give extra protection from contamination, high abrasive resistance. 3m signal cable applies multilayer shielded wire steel and metal shell protection.

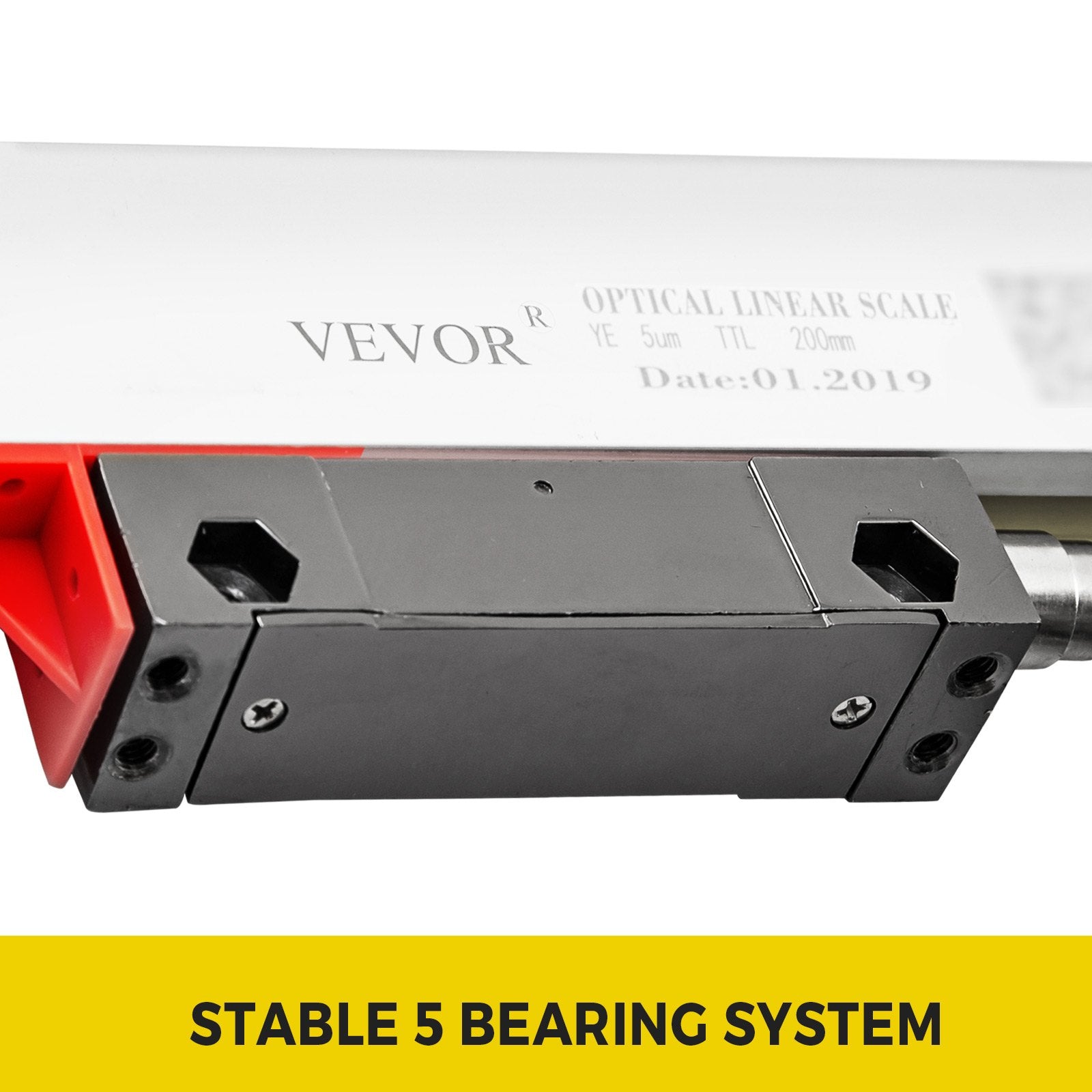

STABLE SLIDE PART- Slide part adopts of reliable and durable 5 bearing system design. The repeated positioning measurement is more stable. With an additional T-slot (Not including in the package), the back groove could be used for installation when the contact surface is too short, or could be addition support when using long linear scale.

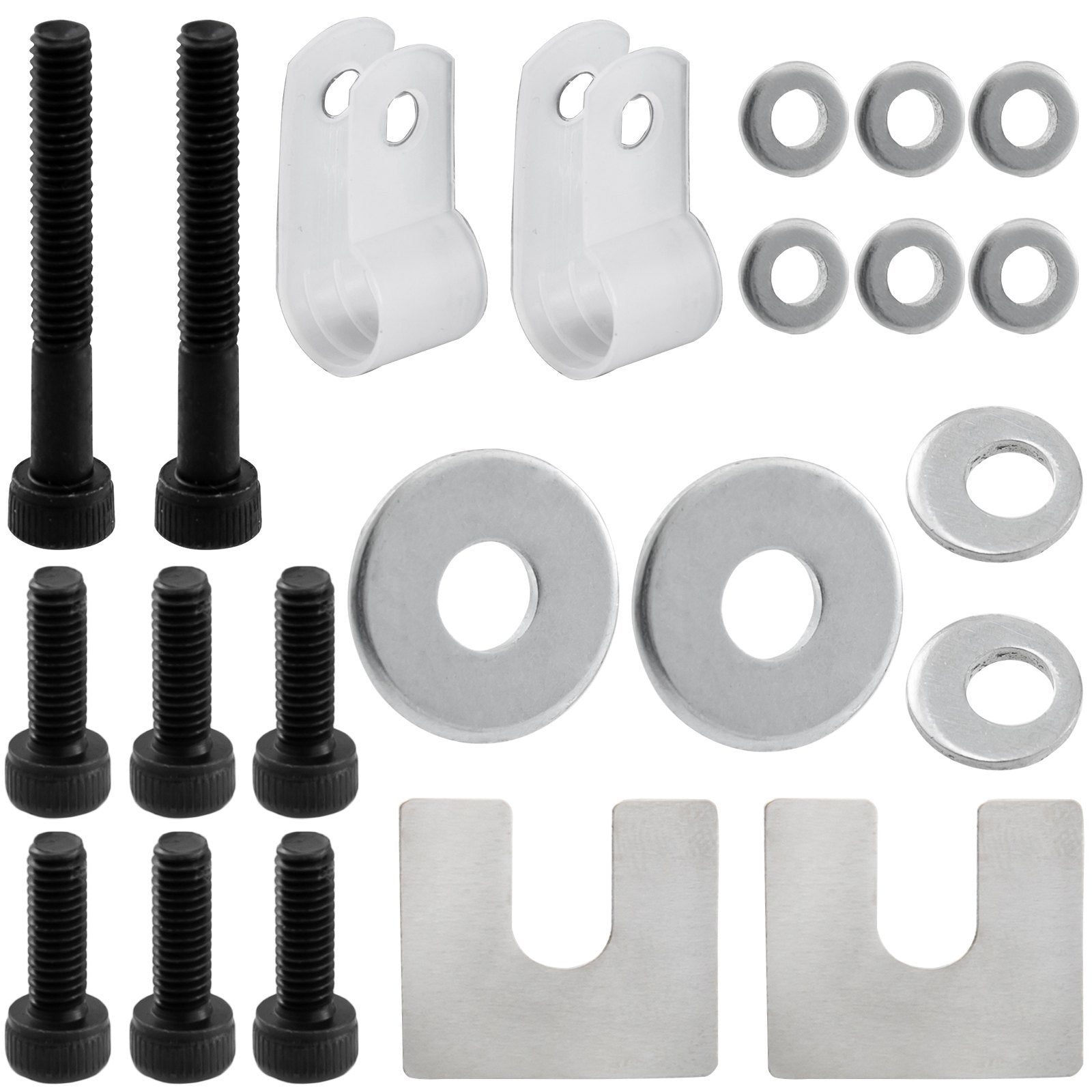

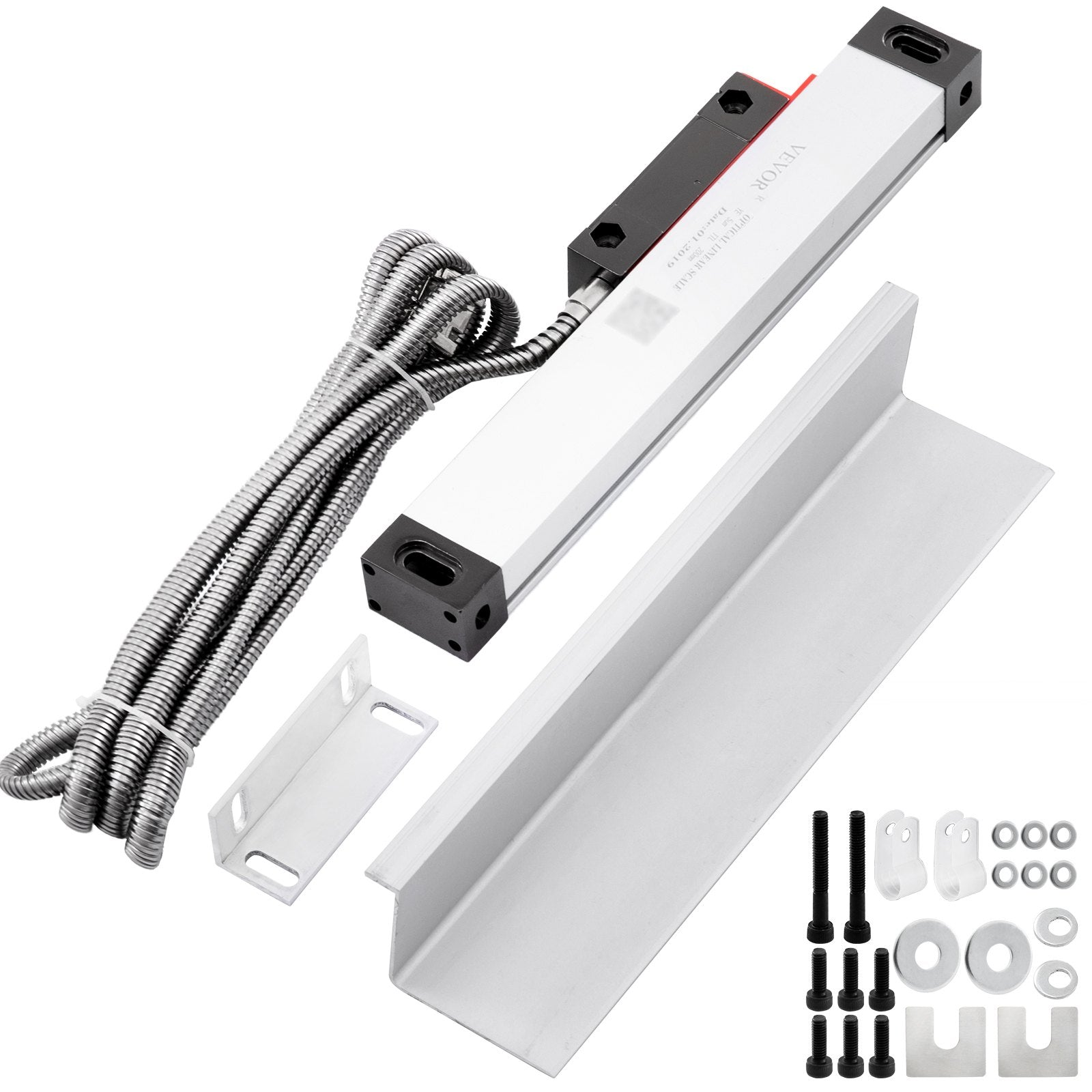

CONVENIENT & PRACTICAL- A rigid metal extrusion with slotted end blocks for simple adjustable mounting. Several mounting points for through hole or easy attachment to brackets and additional mounting hardware.
