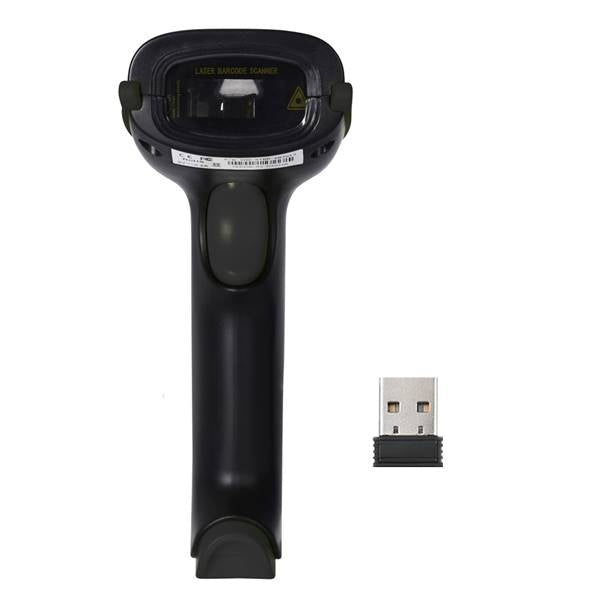

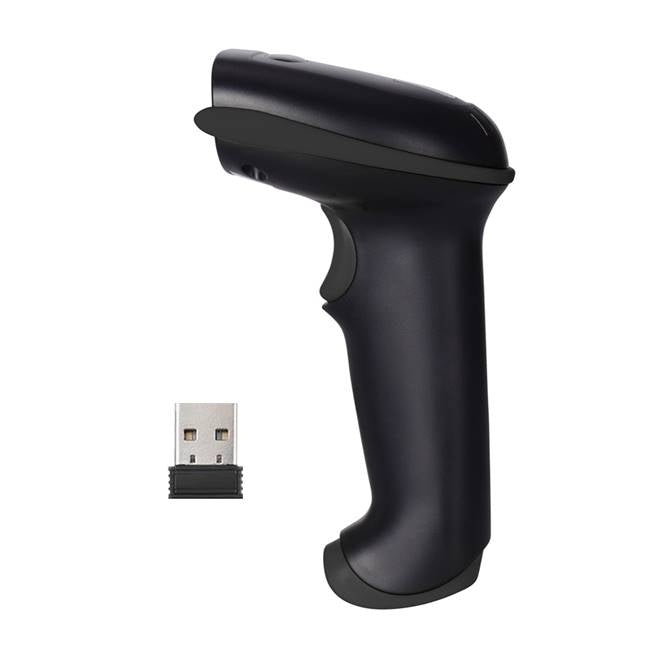

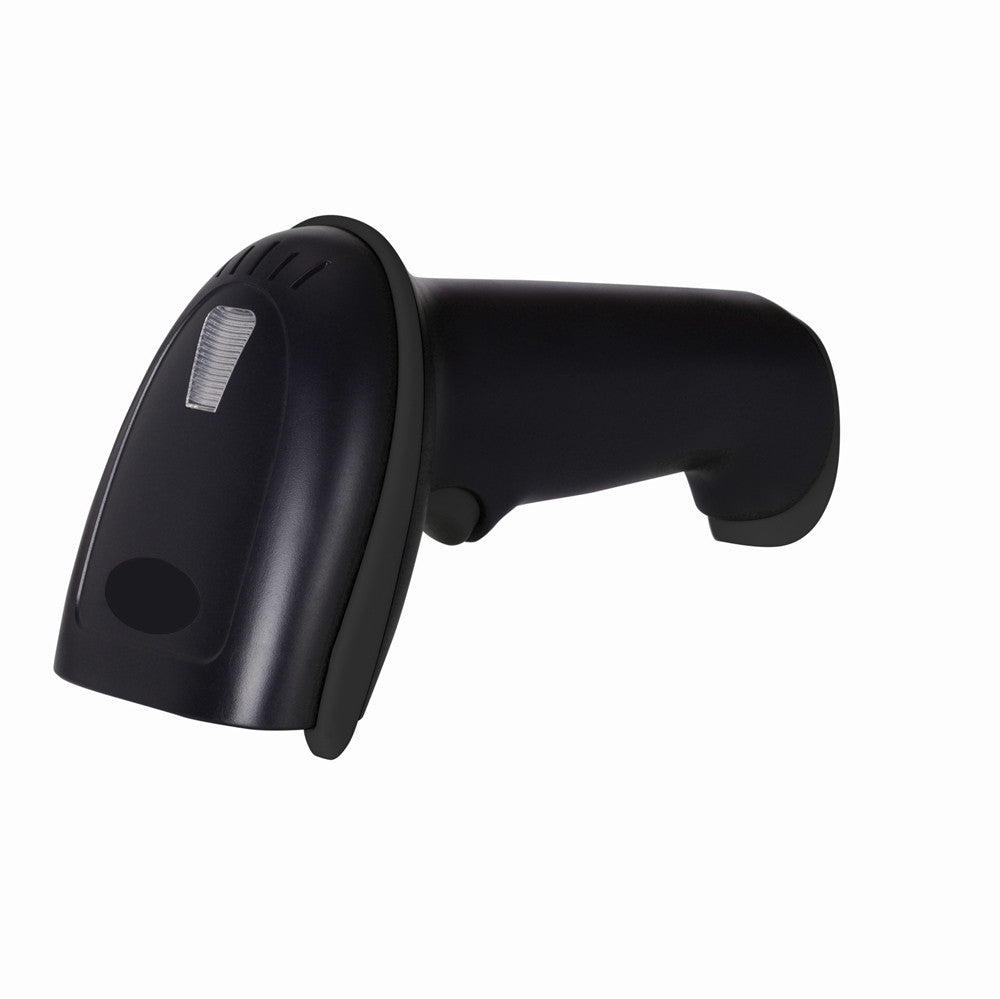

YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode / QR Code Scanner
YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode / QR Code Scanner
YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode / QR Code Scanner
Click to open expanded view
Free Ship Direct Import

YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode / QR Code Scanner

SKU: V28-ELEINTYHD5700DB
Sale price
$76.90
Regular price
$89.95
You save
15%
In stock and ready for shipping
Shipping Estimate
American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

This item will be shipped from Overseas

Estimated Shipping Time Frames

1-3 Business Days Dispatch from Overseas

For customers in VIC, approximately 3 - 5 working days after dispatch;

For customers in NSW, SA, ACT, approximately 4 - 8 working days after dispatch;

For customers in QLD, NT, WA and TAS, approximately 7 - 10 working days after dispatch.

Have a question?
YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode / QR Code Scanner

YHDAA YHD-5700DB 2D Wireless Bluetooth Barcode / QR Code Scanner

$76.90
$89.95

Product information

  • HID/SPP Mode and can switch.
  • Supports Bluetooth/2.4G/Wired Mode, 3modes for option.
  • Supports Handheld/Continuous/Auto-Induction , 3modes for option.
  • Support over sixteen different countries' keyboard layout.
  • Excellent decoding ability, high speed and low error rate.
  • Built-in 2600mAh battery, super-long standby time.
  • Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
  • It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile.
  • phone and computer screen, and it also can read 2D barcodes.
  • Can be customized according to customer demand.

    • Technical parameters

    V28-ELEINTYHD5700DB

    Product Specification: YHD-5700DB  2D Wireless Bluetooth Barcode Scanner

    Scanner parameters:

    Transmission mode: Bluetooth/2.4G/Wired

    Storage: 100,000 barcodes

    Distance: 50m/100m/1.5m

    Sensor: 640 × 480 CMOS

    CPU: ARM 32-bit Cortex

    Battery: 3.7V-2600mAh

    Indication: Buzzer & LED

    Light aimer:617nm LED

    Resolution: 4mil

    Anti-inference: 0-100000Lux Max

    Decoding speed: 500scans/sec

    Illumination:6500K LEDs

    Printing Contract: ≥25%

    Interface: USB, USB-COM

    Button life: 8000,000 times

    Material: ABS+PC

    Trigger Mode: Handheld,Continuous,Auto-Induction

    Depth

    Of

    Field

    13mil-EAN13

    50-250mm

    4mil-code39

    60-100mm

    20mil-QR

    40-300mm

    10mil-PDF417

    40-280mm

    Decode Capability:

    1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5,

    Coda bar, MSI Plessey, RSS, etc.

    2D:  QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.

    Scanning angle: Angle of rotation360°, inclination± 65°, declination ± 60°

    Working current: 3.3Vx200mA

    Standby current: 18uA-5mA

    Working time: 7 to 10 days

    Charging power: 5V-400mA

    Certificate: CE, FCC, RoHS, IP54

    Drop  test: 2m
